Composite IBCs – an engineering marvel.

A typical IBC – made of a steel tubular cage, composite pallet, and polyethylene bottle weighs approximately 130 pounds – yet it contains liquid that can make the IBC weigh over 3000 pounds full. These IBCs are transported via rail, sea vessel, truck and fork lift – all while holding their contents… a marvel.

Being an IBC manufacturer does not get me out of bed in the morning – being a business partner in the context of a long-term relationship that involves IBC supply – that makes me take the stairs two at a time.

Michael Patrick Harding

OUR PRODUCTS

New IBCs

135, 275, 330 gallon made with virgin high molecular weight HPDE, proprietary ball valve, 6” fill cap, on a composite (steel/plastic) pallet; always UN labeled.

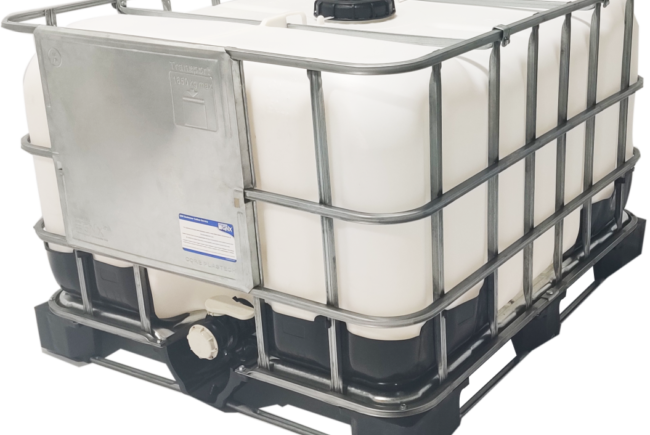

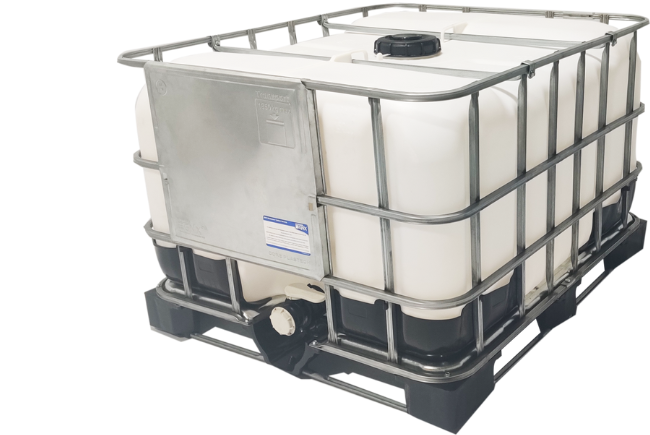

  • 135 gallon – 40” x 48” x 27” High (105#)

    275 gallon – 40” x 48” x 46” High (126#)

    330 gallon – 40” x 48” x 53” High (144#)

  • 2” ball valve – quick disconnect or NPT end with dust cap (viton or epdm gaskets); AGVALVE OPTIONAL

    2” butterfly valve – quick disconnect or NPT end with dust cap (viton or epdm gaskets)

  • 6” solid lid

    6” lid with 2” npt with plug

    6” lid with 2” npt with plug with tamper seal

    6” lid with 2” AGCHEM tamper proof vent

    6” lid with 2” npt with plug with Teflon membrane

  • UN Labeled – UN HA1/Y/1.9/100

    Lid Torque – 75 Foot Pounds

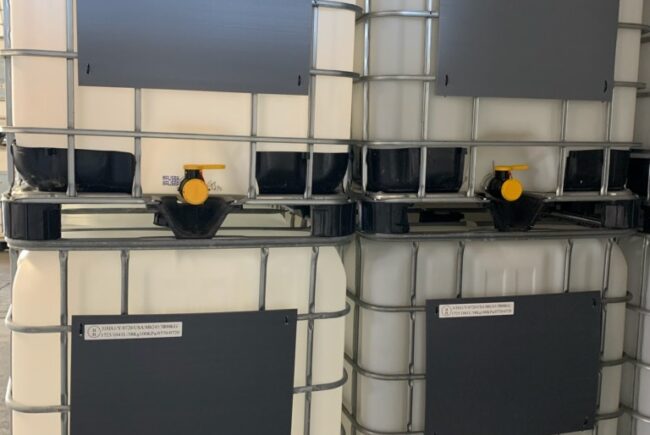

Rebottled or Reconditioned IBCs

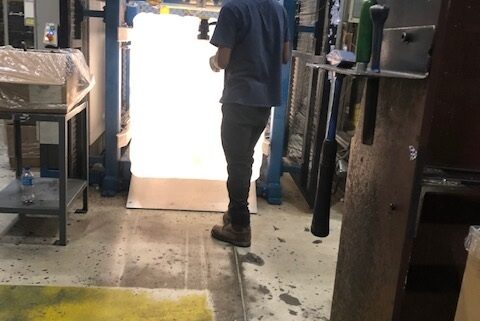

275 and 330 gallon reconditioned (washed and tested) or rebottled (new IBC bottle, cap and valve used cage and pallet).

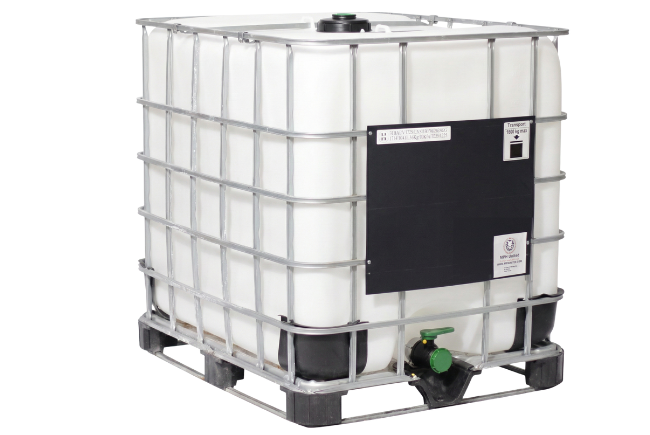

  • 275 gallon – 40” x 48” x 46” High (126#)

    330 gallon – 40” x 48” x 53” High (144#)

  • 2” valve – quick disconnect

  • 6” solid lid

    6” lid with 2” NPT with plug

  • Lid Torque – 75 Foot Pounds

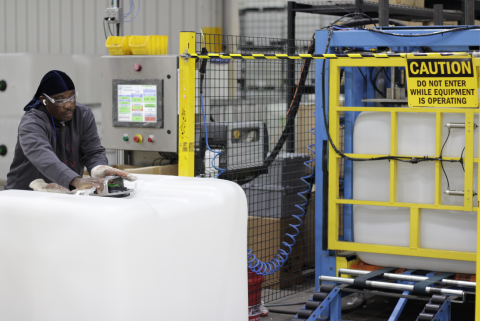

IBC Replacement Bottles

MPH United Universal replacement bottle for all original manufacturers IBCs. 100% virgin HDPE, made in-house and fit all cages with ease.

  • 275 gallon 40” x 48” x 40” High (35#) (90 per trailer)

    330 gallon 40” x 48” x 46” High (42#) (78 per trailer)

  • 2” ball valve with quick disconnect or NPT end, viton or epdm gaskets; AGVALVE optional

    2” butterfly valve with quick disconnect or NPT end, viton or epdm gaskets

  • 6” solid lid

    6” lid with 2” npt with plug

    6” lid with 2” npt with plug with tamper seal

    6” lid with 2” AGCHEM tamper proof vent

    6” lid with 2” npt with plug with Teflon membrane

  • UN Certified for use with all manufacturers

    Lid Torque – 75 Foot Pounds

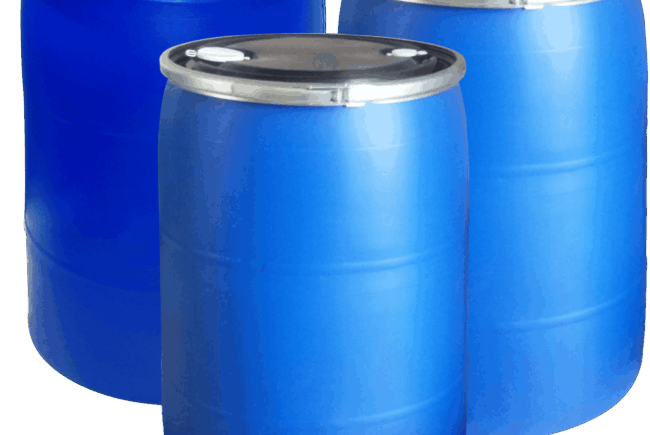

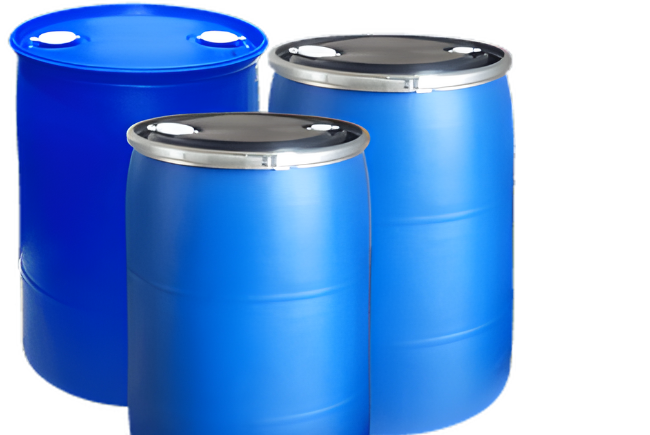

Plastic Drums

55 gallon tight head drums made from 100% virgin HDPE, no fillers, made in Blue, Black, White or Natural – UN rated

  • 55 TH 34.84” H x 23.64”

  • 2” NPS and Buttress

  • UN labeled – 1H1/Y/1.9/150

    Plug Torque – 27 Nm
